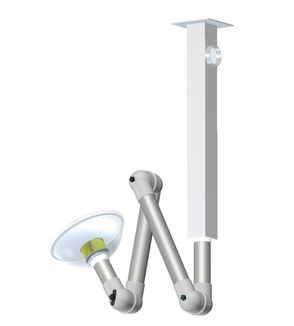

Lab Ceiling Mounted Flexible Hood PP Universal Flexible Fume Extraction Arm
JYLB-50-SFD
|
|
Technical parameter
Model | Material arm | Spring | Size of air outlet | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm A, B, C, D, E | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-50-SFD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | √ | |
JYLB-50-SD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | X |
Description of product configuration
Brand: Jingyu
Product name: Universal Fume Extraction Arm
Diameter of tubular arm: Φ50
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
Specification:
Applications: electronic industry, soldering, laboratory, beauty salon, metal processing workshop, jewelry processing workshops, schools, factories chemical laboratory, mechanical processing workshop. Variety of installation: vertical, hanging, fixed on the wall or ceiling
Size: 50mm/100mm; (TRANSPARENT),has damper inside Material:ALUMINIUM Color:White Wall mount
Spare parts: optional
Install way:Wall mount or ceiling mounted
Advantages
1. Arm body: aluminum oxide, polishing and grinding process
2. With the help of the high-quality spring of the inner arm and the special sealing ring, the perfect self-hovering function is realized. This structure makes it easy for the operator to adjust the universal suction arm to the source of pollution during work.
3. Mounting bracket: the inner and outer surfaces of the mounting bracket have been sprayed
4. The universal suction arm has excellent self-hovering performance and will not sag due to failure. The suspension rod and spring are made of acid-proof stainless steel.
5. Simple maintenance: as long as it is simple to clean, disassemble and install according to the requirements, it can be completed without any tools
6. Large elbow design minimizes noise and pressure loss
7. Have independent intellectual property rights and a number of patents
Parameters of gas-collecting hood
Picture |
|
|
|
Size | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent |
Material | PC | PC | PC |
Shape | Circle | Circle | Circle |
Usage | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.5-1m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.5m/s |
Certificate
Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI
Company introduction
Wenzhou Jingyu Medical Instruments Co., Ltd., is one of leading enterprise that integrates production, sales, installation and after-sales for fume extraction systems and medical fume extractor, industrial fume extractor products.Over the past 34 years, with customers centered, Jingyu Institute has been ceasingly developing the series products suitable for the customers based on the technology. Our Company has over 40 patents with independent property rights for fume extractor. In China, we are the first company which obtained the Approval of Q Q-switching Technique and Registration Certificate of Super Pulse Laser by the state, and first launches the medical smoking machine, moxibustion smoke exhaust system, air purification products which is widely used in various types of environments,such as hopstial,Food,ChemicalEngineering,SchoolLaboratory Equipment, Grinding Work,Sandblasting Work, Smashing Work.Stirring Operation, Organic Glass Processing Work,Circuit Board Processing Work ,Drilling Work,Rust Cutting Operation.
We have over 34 year rich experience for industrial production and export trade experience of fume extractor, providing quality products and services to more than 200 domestic and foreign customers
'Protect the environment, purify your lung" protect your health as our own duty.
Welcome to visit our factory !
