Laboratory Series of Universal Fume Extraction Arm

Laboratory Series of Universal Fume Extraction Arm

JYLB-780SD

Technical parameter

Description of product configuration

Brand: Jingyu

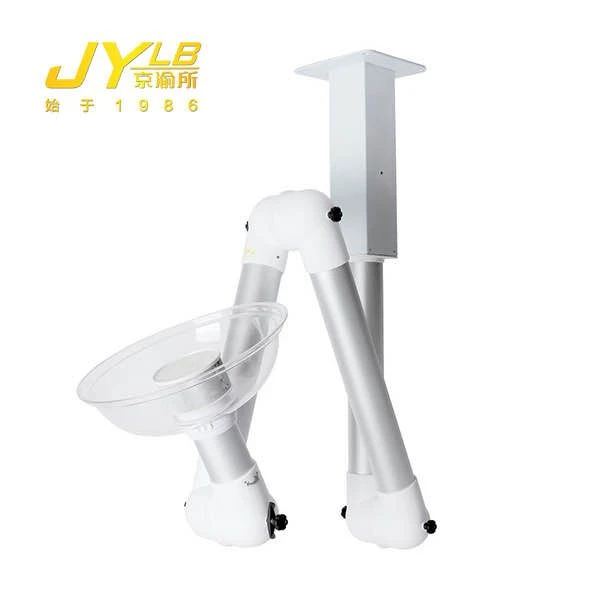

Product name: Universal Fume Extraction Arm

Diameter of tubular arm: Φ78

Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume

Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350

Square: 420×320 or 620×420 (optional)

Color: Transparent

Installing support: 400, 700, 1000, 1200 (optional)

Material: Stainless steel plastic spraying

Parameters of gas-collecting hood

(Ceiling Mounted / Wall Mounted)
Joint: High grade PP, to be 360° swiveled, dismantled & assembled easily for cleaning
Guiding ring: Low-friction treated rubber.
Center bolt: 304 stainless steel.
Adjustable joint knob: High grade PP with a moded-in s/s bearing locking with center bolt.
Damper: To manually adjust air flow with a knob
Dome/cup hood: High grade PP/PC.
Tube: Φ75mmPP.
360° swing device: Enabling movement radius to max.1600mm.
Installation Bracket: Injection of plastics from a complete mold, mounting panel strongly connecting to the joint
Optional Cover: Used for covering around the tube cutout on the ceiling.

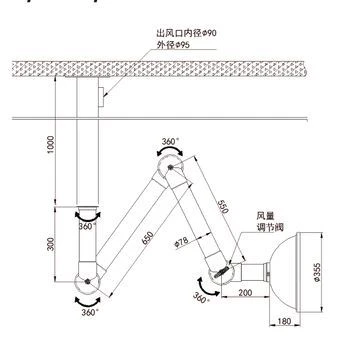

Installation method of universal extraction hood

Application and Feature:

*Our fume extraction arms system is a kind of high efficiency device specially designed for using in the laboratories frequently. It is applicable to environment that has close contact with volatile corrosive substances. It can remove harmful gas, smoke and dust to ensure the ideal and safe air, and keep away hazardous substances from the human body effectively, so can protect the user.

*It has been widely used in various experiment and production fields, such as

electronic engineering, Iaser technology, chemistry, medical treatments, pharmacy, food industry, laboratories, production factories, schools and the places, where promote the productivity and working performance effectively.

*JYLB series fume extraction arms approval Patent certificate in China ,the

*Our fume extraction arms can keep hanging status automatically. The system is connected with crosshead made of stainless steel to reduce noise and loss of pressure, and it can be adjusted to any place conveniently by independent sustaining springs(inside and outside).

*It is very easy to operate and maintain the products.The product has 5 years granntee They can be adjusted to another place by one hand, and can be disassembled and washed without any tools.

*It is very easy to install the products on the table, on the wall, on the ceiling and can also be installed on the production equipment.Adjusting the Exhausting Capacity,Movable valve is installed inside the joint, fitting tightly with inner cavity of the joint. Stepless regulation with straight adjusting knob, which can guarantee the maximum efficiency of the exhaust system at suitable place.

Certificate

Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI

Package

Carton packaging, pallet packaging with foreign trade export standards

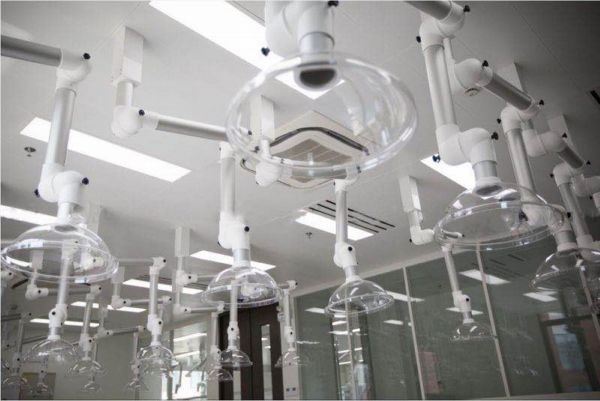

Application place

laboratory, School,Research Institute,Laboratory pharmaceutical industry, electronics factory, chemical industry, food industry, dentistry, laser electrosurgical unit, spray room, gynecology, dermatology, cosmetology, mechanical processing workshop, cultural relic restoration, etc.
