JYLB-720-SFQ/SQ
 |  |
Technical parameter

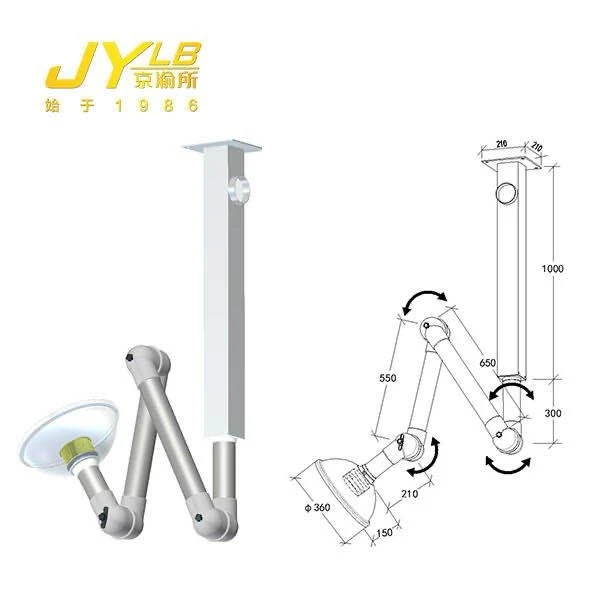

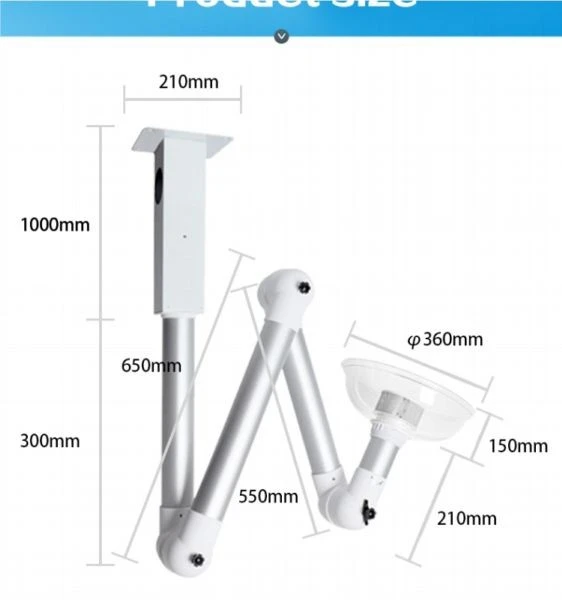

Model | Material arm | Spring | Size of air outlet | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm A, B, C, D, E | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-720-SFQ | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ72 | POE | 1.2-1.8 m | Wall type | 1000, 300, 650, 550, 200 | 80-150mᶾ/h | Red | Configurable | √ | |
JYLB-720-SQ | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ72 | POE | 1.2-1.8 m | Wall type | 1000, 300, 650, 550, 200 | 80-150mᶾ/h | Red | Configurable | × |
Description of product configuration
Brand: Jingyu

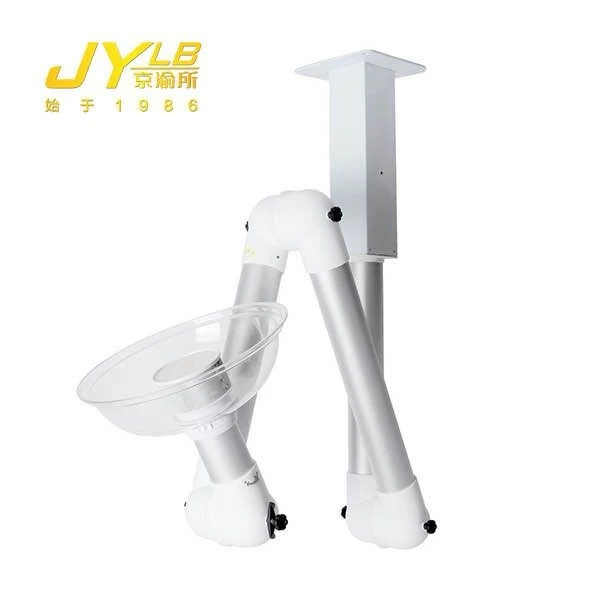

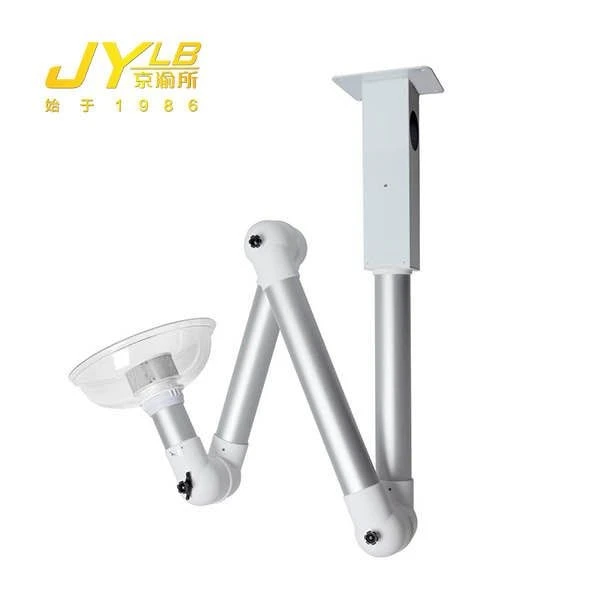

Product name: Universal Fume Extraction Arm
Diameter of tubular arm: Φ72
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Square: 420×320 or 620×420 (optional)
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
Parameters of gas-collecting hood
Picture |
|
|
|
|
Size | 420×320 | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent | Transparent |
Material | PC | PC | PC | PC |
Shape | Square | Circle | Circle | Circle |
Usage | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.25m/s | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.25m/s | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.5-0.8m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.3m/s |
Features of the product:
1. The arms can be locate and hover in any position
2. It can rotate 360º, and can move up, down, left, right, front and back in multiple directions
3. Equipped with a special spherical air valve, the air valve is made of anti-corrosion, alkali-proof and acid-proof materials, with excellent sealing performance and high accuracy
4. The wind speed of the cover mouth can reach 0.5m to 3m/s, the wind speed and flow rate are uniform and smooth, and the use time is extremely long
Scope of application
It is suitable for sucking heavy polluted working environment, such as: aerosol in dentistry, dermatology, atomization room, gynecology, laboratory, solder fumes and dusty gas or light dust.
Company introduction
Wenzhou Jingyu Medical Instruments Co., Ltd., is one of leading enterprise that integrates production, sales, installation and after-sales for fume extraction systems and medical fume extractor, industrial fume extractor products.Over the past 34 years, with customers centered, Jingyu Institute has been ceasingly developing the series products suitable for the customers based on the technology. Our Company has over 40 patents with independent property rights for fume extractor. In China, we are the first company which obtained the Approval of Q Q-switching Technique and Registration Certificate of Super Pulse Laser by the state, and first launches the medical smoking machine, moxibustion smoke exhaust system, air purification products which is widely used in various types of environments,such as hopstial,Food,ChemicalEngineering,SchoolLaboratory Equipment, Grinding Work,Sandblasting Work, Smashing Work.Stirring Operation, Organic Glass Processing Work,Circuit Board Processing Work ,Drilling Work,Rust Cutting Operation.
We have over 34 year rich experience for industrial production and export trade experience of fume extractor, providing quality products and services to more than 200 domestic and foreign customers
'Protect the environment, purify your lung" protect your health as our own duty.
Welcome to visit our factory !
FQA
Q. Are you trading company or manufacturer?
A:We have our own factory in Wenzhou city. We are able to provide OEM or ODM service and one step solution for smoke pollution problem.
Q: When can I get the price?
A:You can make the order directly from our product's link for 1 or 2 units. Or please send us inquiries at any time, we'll reply you as soon as we can.
Q: What is your term of delivery?
We accept EXW, FOB China or CIF distination port. You can choose the one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A:Normally, the leadtime is around 10-20 days. The exact date will depend on the order quantity.
Q:How long take to replace the your primary filter ?
A: 2-3 Month
Q: Is this filter is a patented product of your company? what is the material for filter?
A: Yes,This filter element is do our special patented product only our company manufacture , which can filter 85% of bacteria, dust, dust particles, chemical harmful gases in the air, and protect people's breathing.This filter is installed on our smoking machine, including our laboratory suction arm and all series products with special filter material
