Lab Universal Fume Extraction Hood, Lab Gas Fume Extractor Arm Hood
4-Joints Desktop Fume Extractor, Exhaust Arm JYLB-780
|
|
|
Scenario 1 | Scenario 2 | Scenario 3 |
 |  |
Technical parameter
Model | Material arm | Spring | Suction port Size | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-780-SFZ | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ78 | POE | 0.3-0.8m | Desktop | 450, 550, 200 | 80-180mᶾ/h | White | Configurable | √ | |
JYLB-780-SZ | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ78 | POE | 0.3-0.8m | Desktop | 450, 550, 200 | 80-180mᶾ/h | White | Configurable | × |
Description of product configuration
Brand: Jingyu
Product name: Universal Fume Extraction Arm

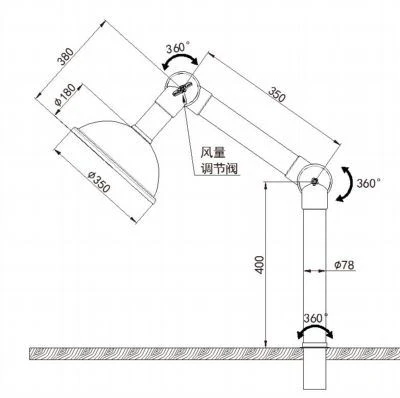

Diameter of tubular arm: Φ78
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Square: 420×320 or 620×420 (optional)
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
Parameters of gas-collecting hood
Picture |
|
|
|
|
Size | 420×320 | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent | Transparent |
Material | PC | PC | PC | PC |
Shape | Square | Circle | Circle | Circle |
Usage | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.5-1m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.5m/s |
Installation way:
Ceiling installation, wall installation, desktop installation
How to use
Instructions
1. Turn on the main switch of the exhaust system fan.
2. Holding the second section of the suction arm, unfold the folded universal suction arm slightly and point it to the point where the smoke or dust is generated.
3. Adjust the universal arm so that the center point of the unfolded air collecting hood is aligned with the generating point of the moxibustion smoke and dust mist.
4. Adjust the height of the universal suction arm, and the height of the air collecting hood is 15cm～25cm from the smoke or dust generating point.
5. Rotate the air valve knob to adjust the air volume, so that the moxibustion smoke and dust can be inhaled into the air collecting hood naturally and smoothly.
6. By adjusting the arm joint knob, it is better to pull the universal suction arm lightly without sagging (Note: It is not necessary to adjust the arm joint knob every time you use it. The tightness of the arm joint can ensure that the universal suction arm is free. Position rotation is better).
7. After use, the foldable universal suction arm should return to its original position, so it is better not to touch your head or block the user's operation.
Note: After the universal suction hood has been used for 3 to 5 days, it needs to be scrubbed with clean water to ensure its surface is bright and transparent; the temperature-resistant acrylic of the suction hood is 70°C, and the POE is 100°C
Certificate
Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI
Company introduction
Wenzhou Jingyu Medical Instruments Co., Ltd., is one of leading enterprise that integrates production, sales, installation and after-sales for fume extraction systems and medical fume extractor, industrial fume extractor products.Over the past 34 years, with customers centered, Jingyu Institute has been ceasingly developing the series products suitable for the customers based on the technology. Our Company has over 40 patents with independent property rights for fume extractor. In China, we are the first company which obtained the Approval of Q Q-switching Technique and Registration Certificate of Super Pulse Laser by the state, and first launches the medical smoking machine, moxibustion smoke exhaust system, air purification products which is widely used in various types of environments,such as hopstial,Food,ChemicalEngineering,SchoolLaboratory Equipment, Grinding Work,Sandblasting Work, Smashing Work.Stirring Operation, Organic Glass Processing Work,Circuit Board Processing Work ,Drilling Work,Rust Cutting Operation.
We have over 34 year rich experience for industrial production and export trade experience of fume extractor, providing quality products and services to more than 200 domestic and foreign customers
'Protect the environment, purify your lung" protect your health as our own duty.
Welcome to visit our factory !
Scope of application
It is suitable for sucking heavy polluted working environment, such as: aerosol in dentistry, dermatology, atomization room, gynecology, laboratory, solder fumes and dusty gas or light dust.
