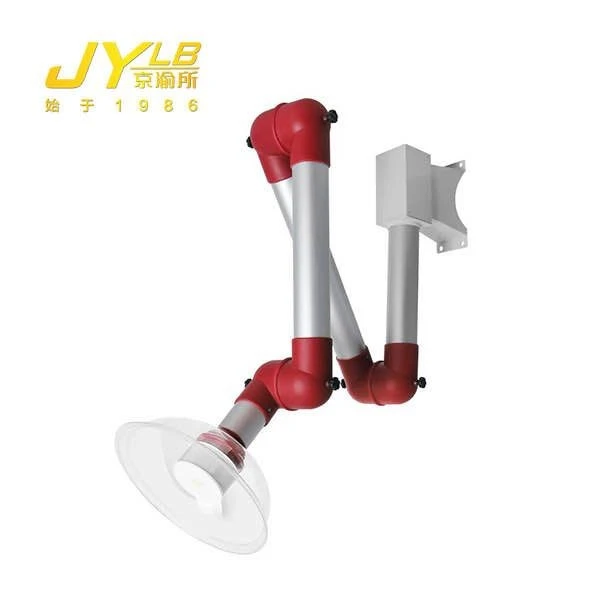

Lab Dust And Smoke Universal Flexible Fume Extraction Arm

Lab Dust and smoke Universal Flexible Fume Extraction Arm

JYLB-50-SFD

Technical parameter

Description of product configuration

Brand: Jingyu

Product name: Universal Fume Extraction Arm

Diameter of tubular arm: Φ50

Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume

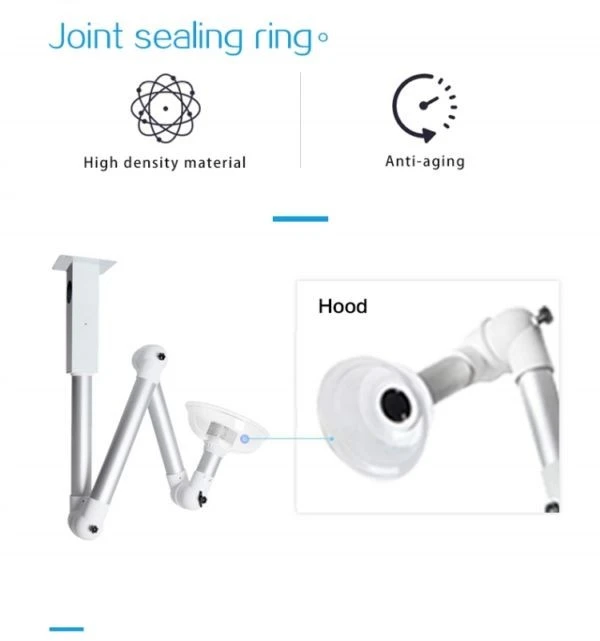

Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350

Color: Transparent

Installing support: 400, 700, 1000, 1200 (optional)

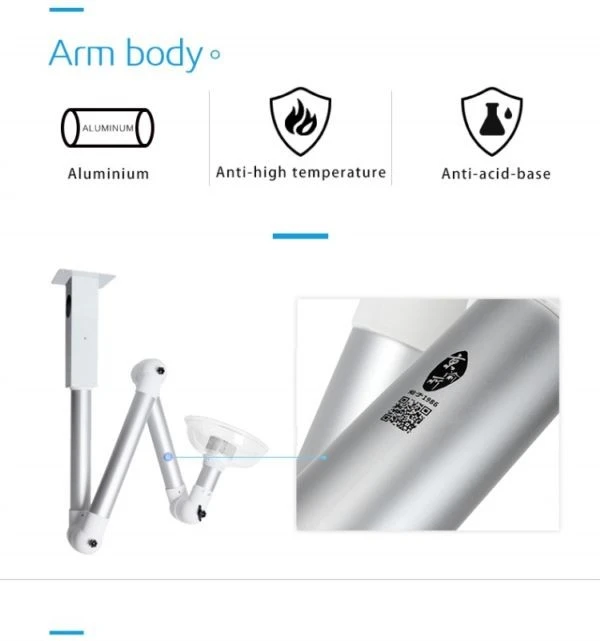

Material: Stainless steel plastic spraying

Parameters of gas-collecting hood

Application place

laboratory, School,Research Institute,Laboratory pharmaceutical industry, electronics factory, chemical industry, food industry, dentistry, laser electrosurgical unit, spray room, gynecology, dermatology, cosmetology, mechanical processing workshop, cultural relic restoration, etc.

How to use

Instructions

1. Turn on the main switch of the exhaust system fan.

2. Holding the second section of the suction arm, unfold the folded universal suction arm slightly and point it to the point where the smoke or dust is generated.

3. Adjust the universal arm so that the center point of the unfolded air collecting hood is aligned with the generating point of the moxibustion smoke and dust mist.

4. Adjust the height of the universal suction arm, and the height of the air collecting hood is 15cm～25cm from the smoke or dust generating point.

5. Rotate the air valve knob to adjust the air volume, so that the moxibustion smoke and dust can be inhaled into the air collecting hood naturally and smoothly.

6. By adjusting the arm joint knob, it is better to pull the universal suction arm lightly without sagging (Note: It is not necessary to adjust the arm joint knob every time you use it. The tightness of the arm joint can ensure that the universal suction arm is free. Position rotation is better).

7. After use, the foldable universal suction arm should return to its original position, so it is better not to touch your head or block the user's operation.

Note: After the universal suction hood has been used for 3 to 5 days, it needs to be scrubbed with clean water to ensure its surface is bright and transparent; the temperature-resistant acrylic of the suction hood is 70°C, and the POE is 100°C.
