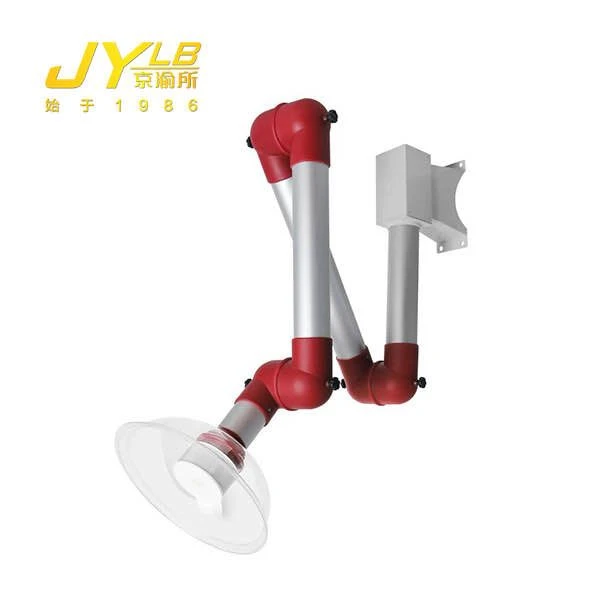

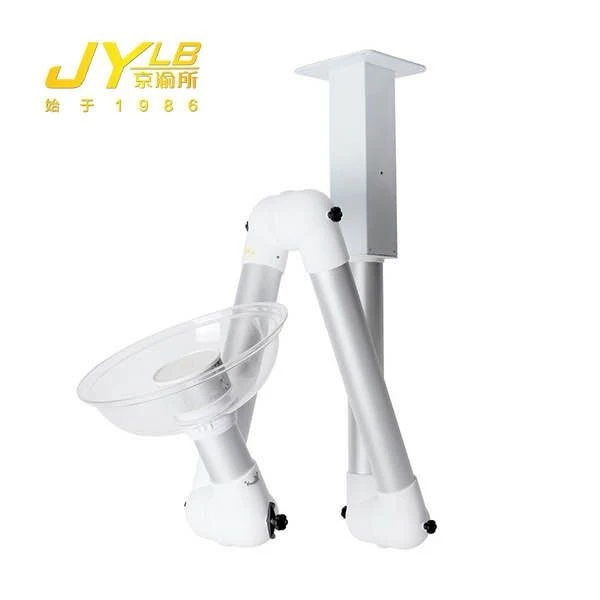

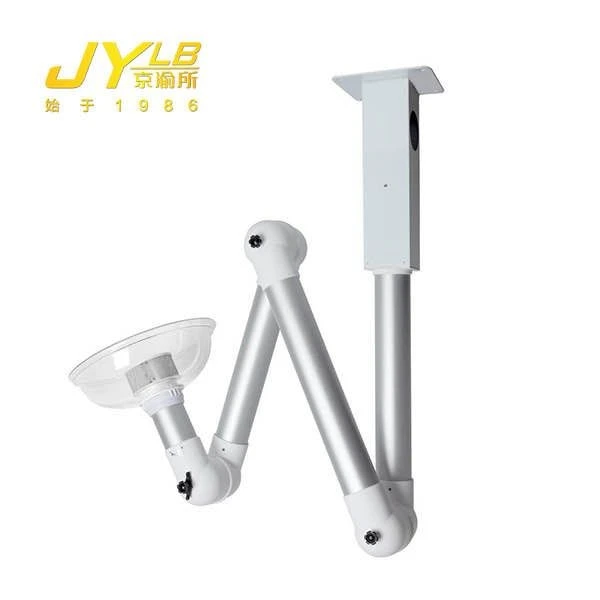

Three Joints Flexible Suction Arms
JYLB-50
|
|
Technical parameter
Model | Material arm | Spring | Size of air outlet | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm A, B, C, D, E | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-50-SFD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | √ | |
JYLB-50-SD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | X |
Description of product configuration
Brand: Jingyu
Product name: Universal Fume Extraction Arm
Diameter of tubular arm: Φ50
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
Parameters of gas-collecting hood
Picture |
|
|
|
Size | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent |
Material | PC | PC | PC |
Shape | Circle | Circle | Circle |
Usage | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.5-1m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.5m/s |
Certificate
Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI

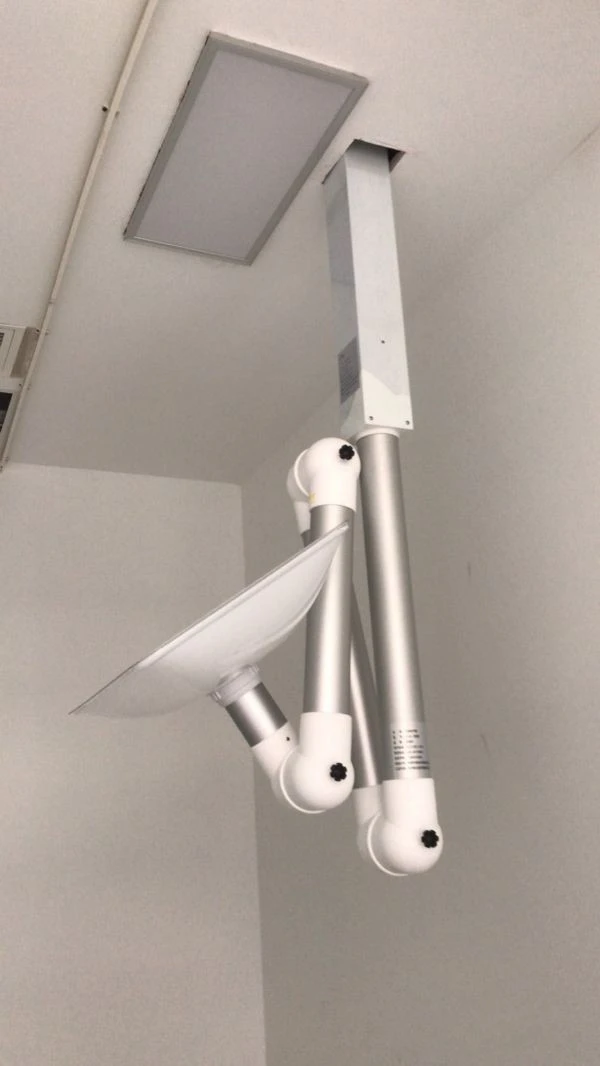

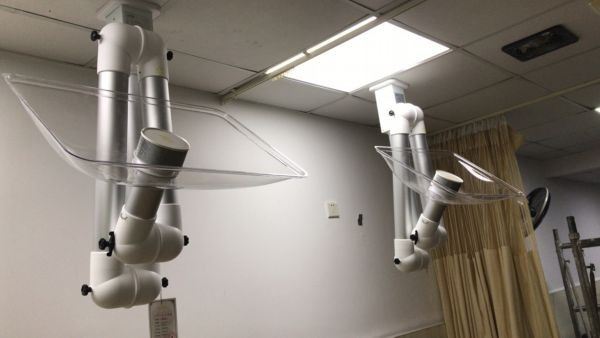

Installation way:
Ceiling installation, wall installation, desktop installation
Application place
laboratory, School,Research Institute,Laboratory pharmaceutical industry, electronics factory, chemical industry, food industry, dentistry, laser electrosurgical unit, spray room, gynecology, dermatology, cosmetology, mechanical processing workshop, cultural relic restoration, etc.
Features:
Universal And Adjustable: Can rotate freely in 360 degrees. You can freely adjust and adjust according to your needs.
High-quality Materials: using PP material, there is no need to worry about quality problems.
Wall-Mounted Model: Fixed on the wall, not occupying the workbench and saving space to make your work more efficient.
Installation Form: wall-mounted installation (including fixing parts required for installation), one-stop solution to your needs.
Applicable Places: laboratories, factory, school, research institute, chemical plants, hospitals and other places.
Q. Are you trading company or manufacturer?
A:We have our own factory in Wenzhou city. We are able to provide OEM or ODM service and one step solution for smoke pollution problem.
Q: When can I get the price?
A:You can make the order directly from our product's link for 1 or 2 units. Or please send us inquiries at any time, we'll reply you as soon as we can.
Q: What is your term of delivery?
We accept EXW, FOB China or CIF distination port. You can choose the one which is the most convenient or cost effective for you.
Q:What about the lead time for the mass production?
A:Normally, the leadtime is around 10-20 days. The exact date will depend on the order quantity.
Q:How long take to replace the your primary filter ?
A: 2-3 Month
Q: Is this filter is a patented product of your company? what is the material for filter?
A: Yes,This filter element is do our special patented product only our company manufacture , which can filter 85% of bacteria, dust, dust particles, chemical harmful gases in the air, and protect people's breathing.This filter is installed on our smoking machine, including our laboratory suction arm and all series products with special filter material
