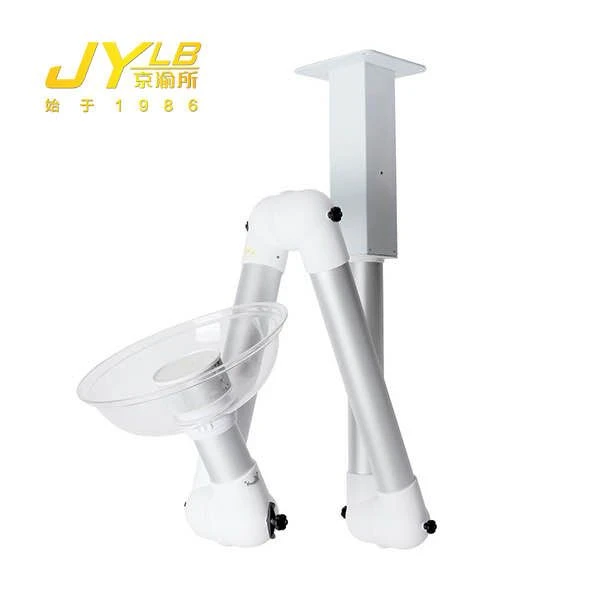

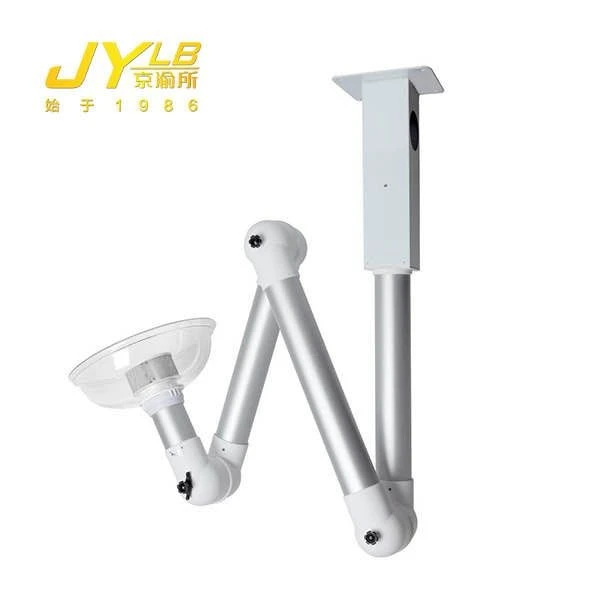

lab universal flexible fume extraction arm
JYLB-50-SFD
|
|
Technical parameter

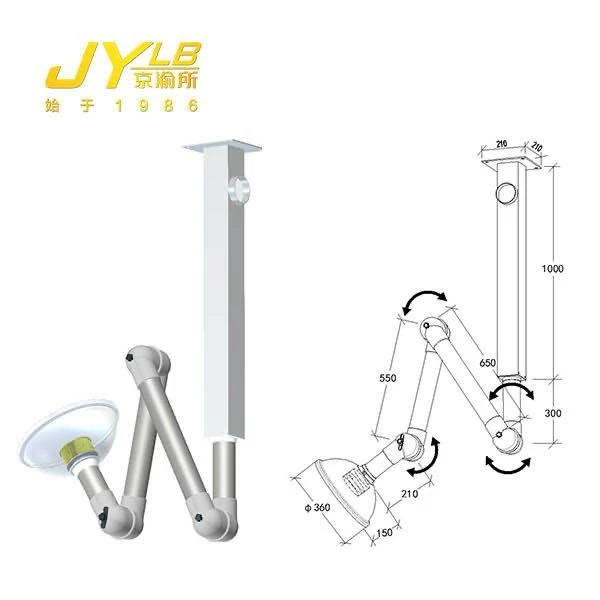

Model | Material arm | Spring | Size of air outlet | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm A, B, C, D, E | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-50-SFD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | √ | |
JYLB-50-SD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | X |
Description of product configuration
Brand: Jingyu
Product name: Universal Fume Extraction Arm
Diameter of tubular arm: Φ50
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
Specification:
Applications: electronic industry, soldering, laboratory, beauty salon, metal processing workshop, jewelry processing workshops, schools, factories chemical laboratory, mechanical processing workshop. Variety of installation: vertical, hanging, fixed on the wall or ceiling
Features:

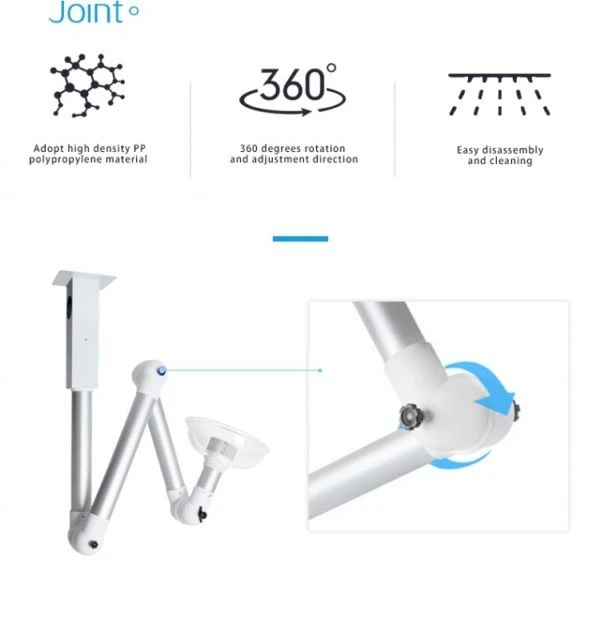

Universal And Adjustable: Can rotate freely in 360 degrees. You can freely adjust and adjust according to your needs.

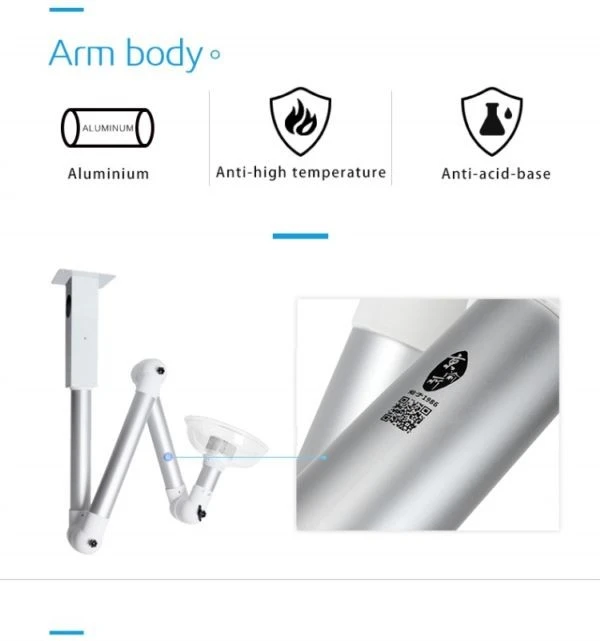

High-quality Materials: using PP material, there is no need to worry about quality problems.

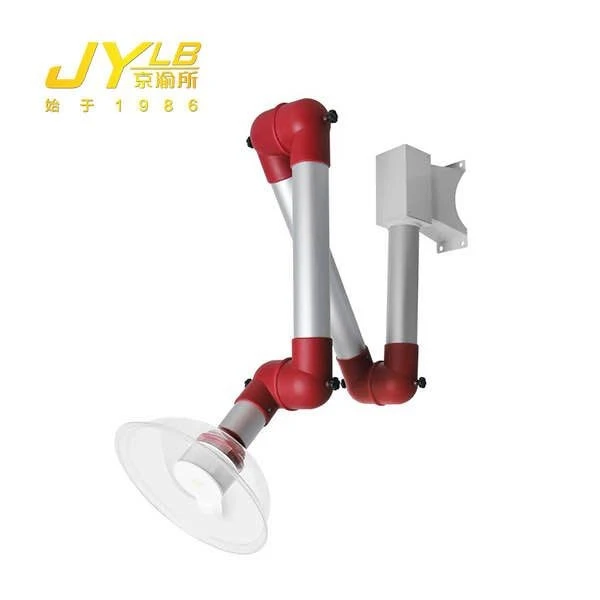

Wall-Mounted Model: Fixed on the wall, not occupying the workbench and saving space to make your work more efficient.
Installation Form: wall-mounted installation (including fixing parts required for installation), one-stop solution to your needs.
Applicable Places: laboratories, factory, school, research institute, chemical plants, hospitals and other places.

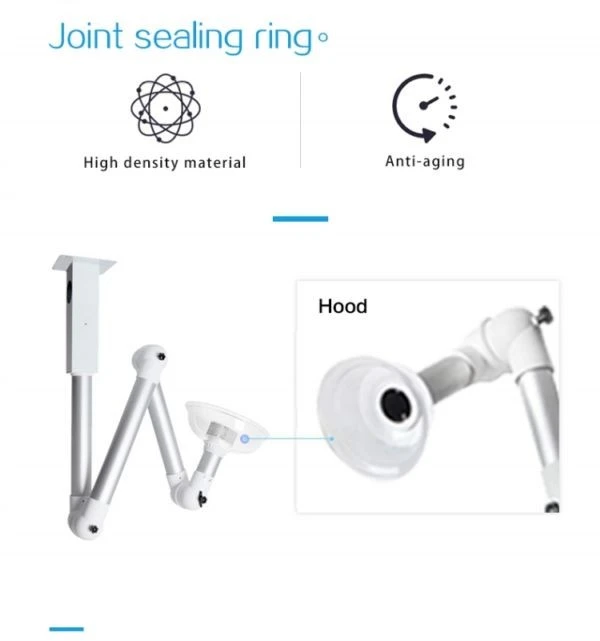

Parameters of gas-collecting hood
Picture |
|
|
|
Size | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent |
Material | PC | PC | PC |
Shape | Circle | Circle | Circle |
Usage | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.5-1m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.5m/s |
Certificate
Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI
Package
Carton packaging, pallet packaging in line with foreign trade export standards
