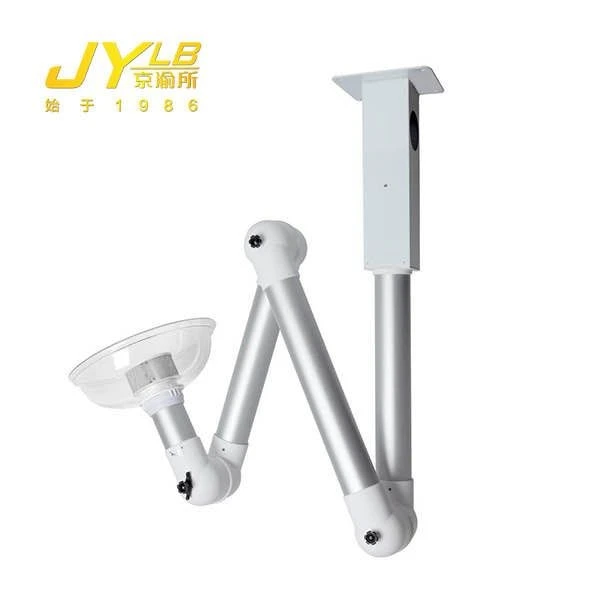

JYLB-780 Laboratory Universal fume Extraction Arm
|
|
|
Scenario 1 | Scenario 2 | Scenario 3 |

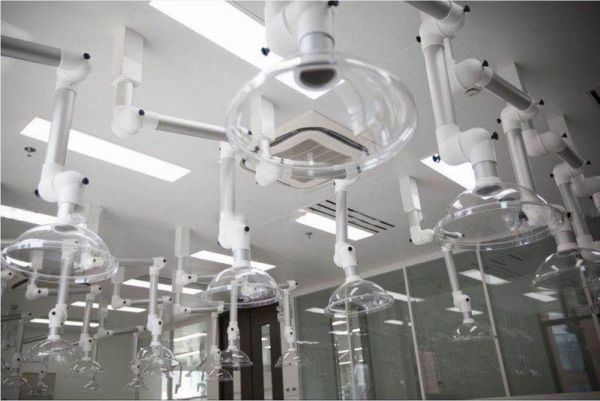

Abundant chemical vapor fog, harmful gas or dust would be generated in production, research and development, experiment and treatment. In order to guarantee the fitness of staff, one universal suction arm is installed at every point near its pollutant sources. It is the best solution to prevent polluted air from diffusing into ambient environment.
Characteristics and advantages
1. Arm body: It adopts the aluminum oxidation process for polishing and grinding.
2. The high-quality spring of inner arm and the idiosyncratic seal ring can achieve perfect self-suspension function. The Universal Suction Arm can be easily adjusted to the pollution sources by operator through it.
3. Installing support: The internal and external surface of installing support shall conduct plastic spraying.
4. The universal suction arm has superb self-suspension function to avoid drooping after invalidation. The hanging stick and spring are made of acid-proof stainless steel.
5. Simple maintenance: It can be maintained through simple cleaning, disassembly and installation as per requirements, without any tools.
6. It is designed with large elbow to minimize the noise and loss of pressure.
7. It owns independent intellectual property right and many patents.
Operating instruction of universal fume extraction arm

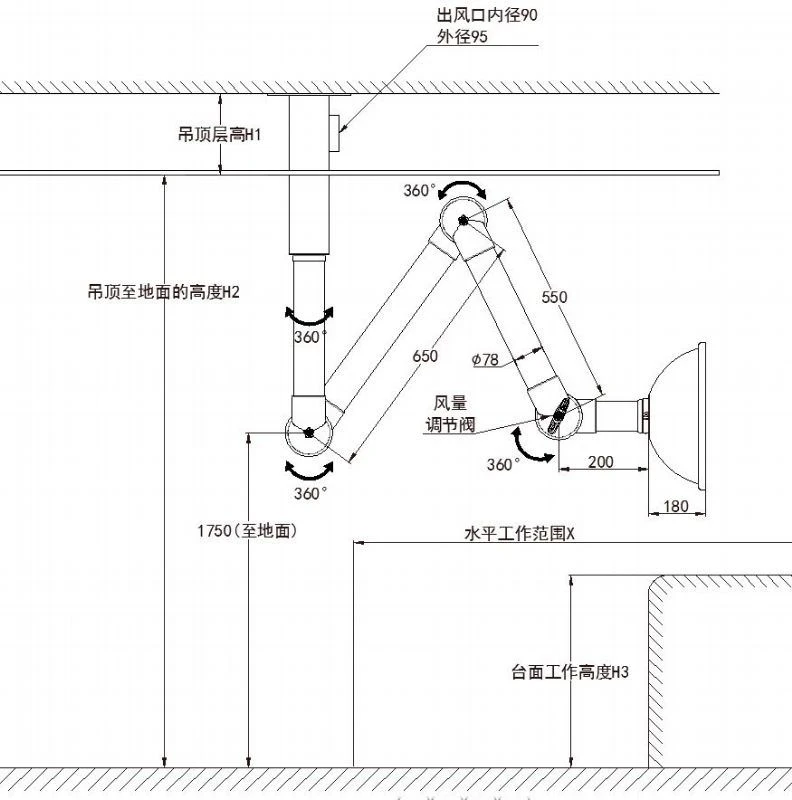

I. Structural Schematic Diagram of Universal Fume Extraction Arm

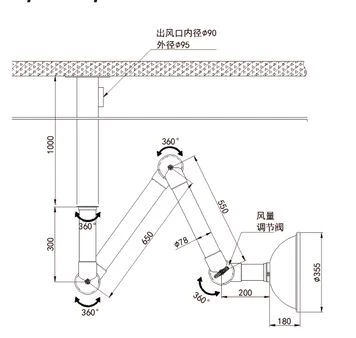

Installation method of universal Universal Fume Extraction Arm[ceiling installation]
JYLB-780-SFD/SD
 |  |
Technical parameter

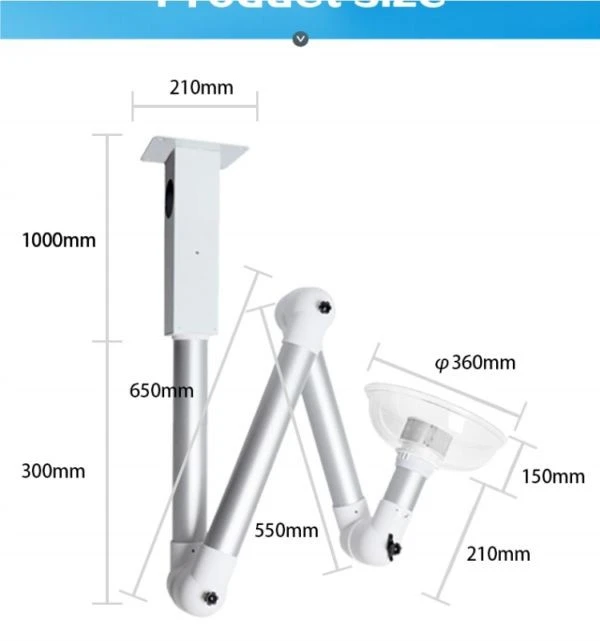

Model | Material arm | Spring | Size of air outlet | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm A, B, C, D, E | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-780-SFD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ78 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 80-180mᶾ/h | White | Configurable | √ | |
JYLB-780-SD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ78 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 80-180mᶾ/h | White | Configurable | × |
Description of product configuration
Brand: Jingyu
Product name: Universal Fume Extraction Arm
Diameter of tubular arm: Φ78
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Square: 420×320 or 620×420 (optional)
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
Parameters of gas-collecting hood
Picture |
|
|
|
|
Size | 420×320 | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent | Transparent |
Material | PC | PC | PC | PC |
Shape | Square | Circle | Circle | Circle |
Usage | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.5-1m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.5m/s |
Features:
Universal And Adjustable: Can rotate freely in 360 degrees. You can freely adjust and adjust according to your needs.
High-quality Materials: using PP material, there is no need to worry about quality problems.
Wall-Mounted Model: Fixed on the wall, not occupying the workbench and saving space to make your work more efficient.
Installation Form: wall-mounted installation (including fixing parts required for installation), one-stop solution to your needs.
Installation way:
Ceiling installation, wall installation, desktop installation
