JYLB-780-SFD/SD
|
|
Technical Parameter

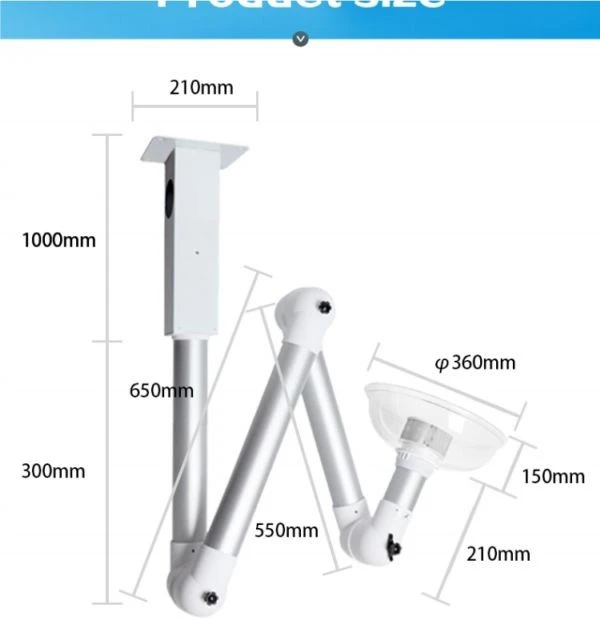

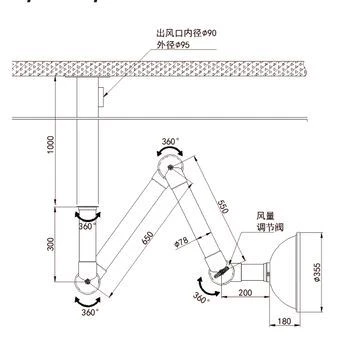

Model | Material arm | Spring | Size of air outlet | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm A, B, C, D, E | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-780-SFD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ78 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 80-180mᶾ/h | White | Configurable | √ | |
JYLB-780-SD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ78 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 80-180mᶾ/h | White | Configurable | × |
Description of product configuration
Brand: Jingyu
Product name: Universal Fume Extraction Arm
Diameter of tubular arm: Φ78
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Square: 420×320 or 620×420 (optional)
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
Parameters of gas-collecting hood
Picture |
|
|
|
|
Size | 420×320 | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent | Transparent |
Material | PC | PC | PC | PC |
Shape | Square | Circle | Circle | Circle |

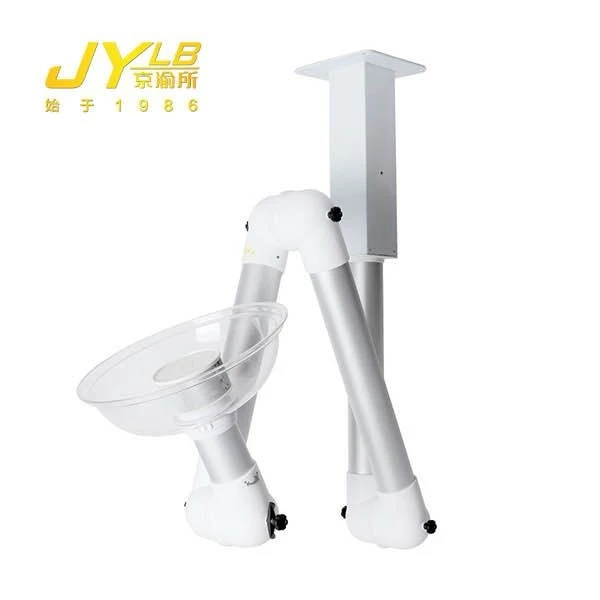

Lab Fume extraction arm JYLB-780
Laboratory Fume extraction arm
(Ceiling Mounted / Wall Mounted)

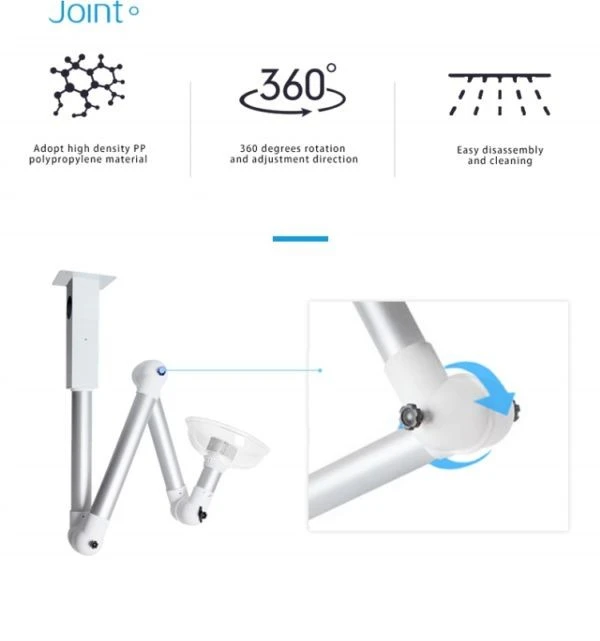

Joint: High grade PP, to be 360° swiveled, dismantled & assembled easily for cleaning
Guiding ring: Low-friction treated rubber.
Center bolt: 304 stainless steel.
Adjustable joint knob: High grade PP with a moded-in s/s bearing locking with center bolt.
Damper: To manually adjust air flow with a knob
Dome/cup hood: High grade PP/PC.
Tube: Φ75mmPP.

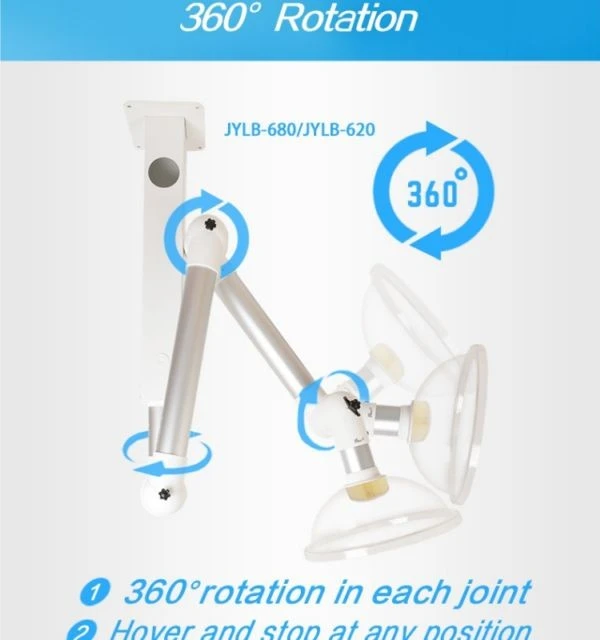

360° swing device: Enabling movement radius to max.1600mm.
Installation Bracket: Injection of plastics from a complete mold, mounting panel strongly connecting to the joint
Optional Cover: Used for covering around the tube cutout on the ceiling.
Installation method of universal extraction hood
Installation way:
Ceiling installation, wall installation, desktop installation
Application place
laboratory, School,Research Institute,Laboratory pharmaceutical industry, electronics factory, chemical industry, food industry, dentistry, laser electrosurgical unit, spray room, gynecology, dermatology, cosmetology, mechanical processing workshop, cultural relic restoration, etc.
