mobile salon fume extractor

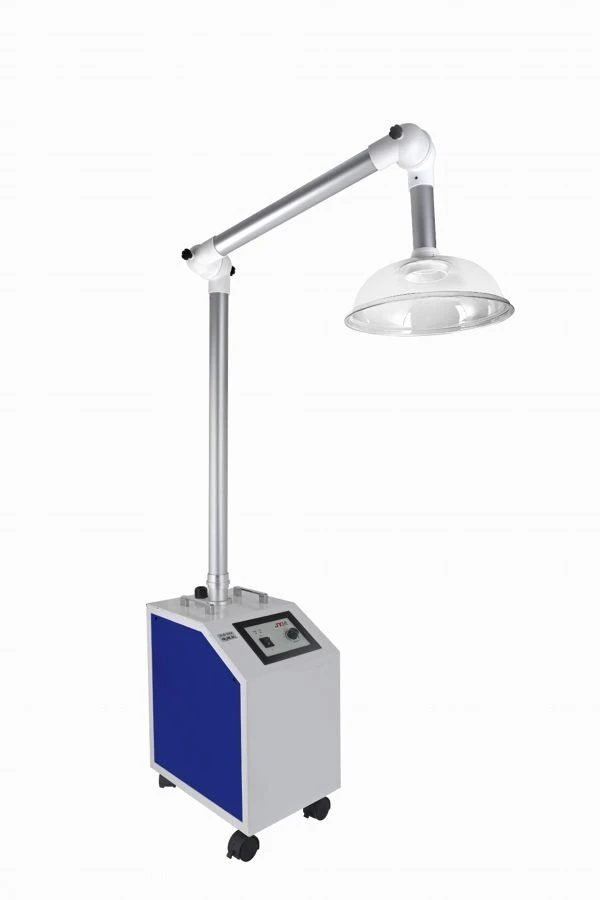

Mobile smoking machine

JYLB-500A-CS

Application scope

Laboratory, soldering tin, Dermatology Department, Cosmetology Department, Gynecology Department, Dental Department, etc.

Working principle

The maintenance-free and high-performance large negative pressure fan in filter sucks the exhaust gas and dust of pollutant sources into the filter from the primary filter element to universal suction arm. Then the exhaust gas and dust are emitted to the air after absorption filtration of main filter. The emitted air reaches the relevant national emission standards for the purpose of protecting the health of staff.

Characteristics and advantages

Good in suction: It can solve the diffusion of chemical gas in the laboratory and smog in the treatment with high-frequency electrotome and laser.

Low noise: It can avoid the secondary pollution due to excessive noise in use process.

No shutdown: It can solve the shutdown of motor due to overheat after continuous operation for a long time.

Easy to operate: It adopts the universal suction arm and matches with various cover mouths to achieve 360° rotation and rotation and stop at optional position, without shielding the operating sight of staff.

No unpleasant smell: Main filter as our company's invention patent (patent No.: ZL2015I0079584.0) can effectively filter the molecule with a diameter of 0.1 um, and its filtration rate is ≥99.99%.

Technical parameter

Brand: Jingyi Institute

Model: JYLB-500A-CS

Suction arm: 5 sections

Size of suction hood: Φ50㎜

Radius of expanding arm: 0.8-1.2m

Air volume: 0-60mᶾ/h

Wind speed of pipeline: 6-8m/s

Input voltage: AC220V/50HZ

Input power: 200W

Filter efficiency: Dust less than 0.5um, unpleasant smell and germ

Weight: 25KG

Overall dimension: 332×432×550

Parameters of gas-collecting hood

Product accessories

Main element	Reusable moxibustion Filter element	Disposable moxibustion filter element	Φ50 primary filter element	Φ50 inclined Suction port	Φ350 Gas-collecting hood	Φ220 Gas-collecting hood
420×620 Gas-collecting hood	Φ160 Gas-collecting hood	Φ50×120 Arc gas-collecting hood	40cm Support	70cm Support	100cm Support	120cm Support
Wall connection Support	Φ50 desktop connection mouth	Φ90 Different interface

FAQs

Question I Whether effectively filter the unpleasant smell occurred during operation?

Yes, it can filter any unpleasant smell in the operation, no odor remains in the room before and after operation

Question 2 Get rid of the suction or noise?

The suction is adjustable, and the air volume can be adjusted as per the smoke volume during the operation, the noise is in 45DB-55DB

Question 3 Which place does the suction smoke exhaust?

After the purifier sucking the smoke dust and odor, it will directly exhaust into the indoor after purification by the primary filter system, both the dust and odor can't escaped

Question 4 How about the simple operation, convenient use, etc.?

Our company adopts the flexible and free developed high-end universal air suction arm, easy to use, no dead angle, positioning precision.

Question 5 What's the difference from the suction machine in the market?

The smoking machines in the market are industrial suction machines, which can only filter part of the dust and can't filter the odor. It is not very convenient to use with inaccurate locating, easy to sag, other than a medical grade smoking machine.

Question 6 Is it frequent and complicated to change the filter element?

The change of filter element is subject to the frequency of utilization of the customer's usage environment and machine. It is very convenient to change the filter element.

Question 7 Is the product manufactured by your own factory?

Our company ensures that all products are from the professional manufacturer with the integration of independently manufacture, sales and maintenance. It is not from the production agent, welcome to visit company.

Company introduction

Wenzhou Jingyu Medical Instruments Co., Ltd., is one of leading enterprise that integrates production, sales, installation and after-sales for fume extraction systems and medical fume extractor, industrial fume extractor products.Over the past 34 years, with customers centered, Jingyu Institute has been ceasingly developing the series products suitable for the customers based on the technology. Our Company has over 40 patents with independent property rights for fume extractor. In China, we are the first company which obtained the Approval of Q Q-switching Technique and Registration Certificate of Super Pulse Laser by the state, and first launches the medical smoking machine, moxibustion smoke exhaust system, air purification products which is widely used in various types of environments,such as hopstial,Food,ChemicalEngineering,SchoolLaboratory Equipment, Grinding Work,Sandblasting Work, Smashing Work.Stirring Operation, Organic Glass Processing Work,Circuit Board Processing Work ,Drilling Work,Rust Cutting Operation.

We have over 34 year rich experience for industrial production and export trade experience of fume extractor, providing quality products and services to more than 200 domestic and foreign customers

'Protect the environment, purify your lung" protect your health as our own duty.

Welcome to visit our factory !

Certificate

Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI
