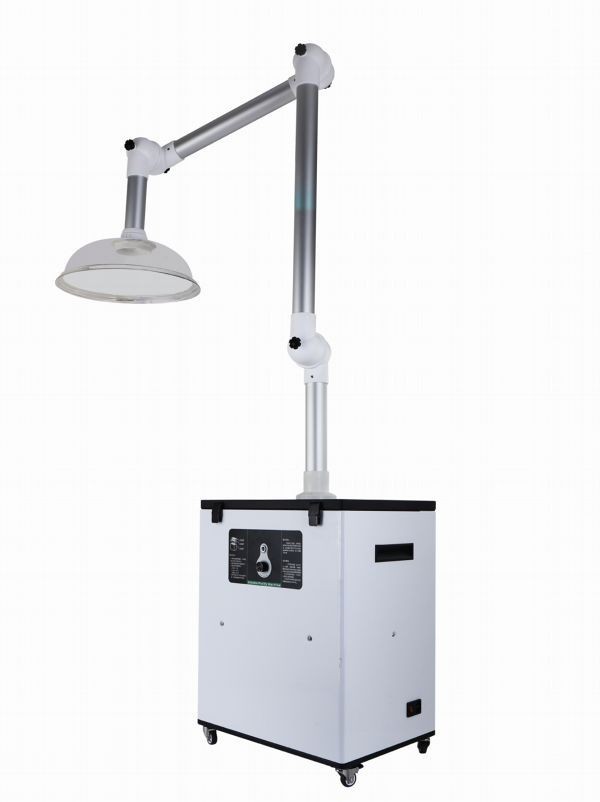

Portable Mobile smoking machine

JYLB-500A-CS

Solder smoking machine

The smoke purifier is a purification equipment designed for smoke, smoke and light particles. It is lightweight, flexible and easy to operate. It has a good purification and filtering effect on the smoke, a small amount of dust, odor, and toxic and harmful gases generated in places such as soldering iron, tin furnace immersion tin, laser marking, laser medical treatment, moxibustion beauty, chemical experiments and other places.

Technical parameter

Brand: Jingyi Institute

Model: JYLB-500A-CS

Suction arm: 5 sections

Size of suction hood: Φ50㎜

Radius of expanding arm: 0.8-1.2m

Air volume: 0-60mᶾ/h

Wind speed of pipeline: 6-8m/s

Input voltage: AC220V/50HZ

Input power: 200W

Filter efficiency: Dust less than 0.5um, unpleasant smell and germ

Weight: 25KG

Overall dimension: 332×432×550

Multiple filtering-mute effect

1. The soot and exhaust gas enter the purifier through the smoking pipe/smoking port

2. The pre-filter layer effectively intercepts the larger pollutant particles in the smoke and exhaust gas, extending the service life of the main filter

3. The filtration efficiency of the main filter layer for particles directly above 0.1 micron in the soot and exhaust gas reaches 99.99% or more. It can effectively adsorb the harmful chemical gases in the smoke and exhaust gas.

What kind of support you can get from Jingyu Medical?
1. 12 months trouble-free warranty and lifetime online support
2. From Monday to Sunday, 9 a.m. to 9 p.m. Experienced technician to guarantee lifetime online suppor (ByWhatsapp/Skype/Wechat/Email/ Remote Assistant- Teamviewer. So no need to worry about the technical support due to time difference
3. We had been in this industry and serve oversea clients more than 34years. And know clearly how to support best.So you could be rest assured about not only before-sale, but also the after-service.

Solution
The arms are connected to a vacuum filter system that removes contaminants from the extracted air.

Advantages
The extraction arms are flexible, easy to position and are not in the way during work. There is no impact on the welding process. Capture rate is excellent.

Product accessories

Main element	Reusable moxibustion Filter element	Disposable moxibustion filter element	Φ50 primary filter element	Φ50 inclined Suction port	Φ350 Gas-collecting hood	Φ220 Gas-collecting hood

420×620 Gas-collecting hood	Φ160 Gas-collecting hood	Φ50×120 Arc gas-collecting hood	40cm Support	70cm Support	100cm Support	120cm Support

Wall connection Support	Φ50 desktop connection mouth	Φ90 Different interface
