Portable Welding Fume Extractor
video
Portable Welding Fume Extractor

Portable Welding Fume Extractor

Support customization
One year warranty
Free design
Various specifications
Send Inquiry

Product Introduction

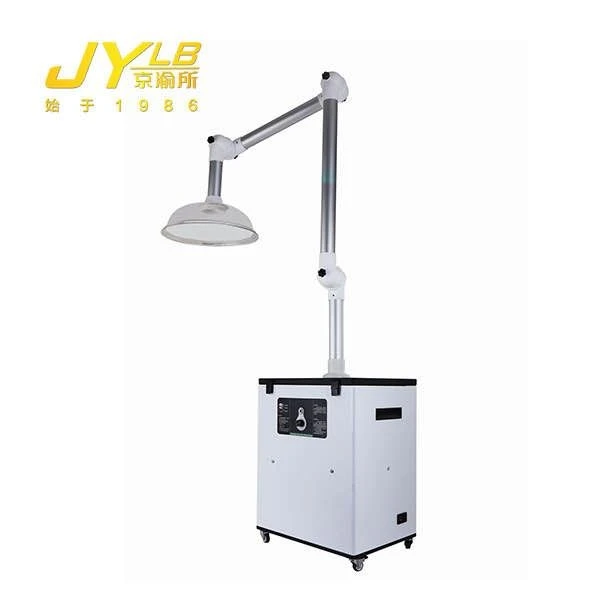

Portable welding fume extractor

JYLB-500A-CS

Why choose us

1. Manufacturer's supply

2. Support customization

3. One year warranty

4. Free design

5. Various specifications

6. Reliable quality

7. Worry-free after-sales

Working steps: Smoke and fog can disperse in 60 seconds

1. Install the smoking hood

2. Plug in the power supply

3. Turn on the switch to adjust the variable speed rotation

4. Adjust the smoking hood to the top of the smoke source

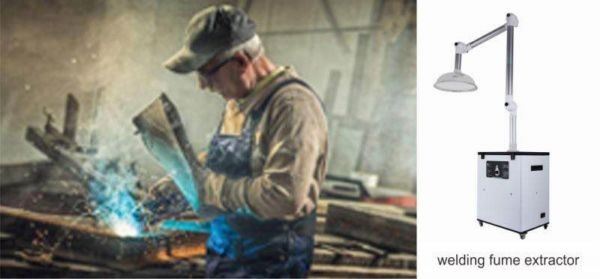

Fume extraction with extractor arms

Solution
The arms are connected to a vacuum filter system that removes contaminants from the extracted air.


Advantages
The extraction arms are flexible, easy to position and are not in the way during work. There is no impact on the welding process. Capture rate is excellent.


200W welding extraction fume system for soldering

1. It realizes powerful suction with quiet operation

2. Brushless motor ensures low noise, stable performance, and long product life

3. Triple-filter design. Pre-filters and Main Filters can be replaced separately for prolonging the filter‘ s life time and cutting down the cost

4. It is easy to install and no need to lay pipelines

5. The airflow is freely adjustable according to working environments

6. Freestanding flexible ducts facilitate production changeovers

7. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you place them exactly where suction is needed.


Technical parameter

Brand: Jingyi Institute

Model: JYLB-500A-CS

Suction arm: 5 sections

Size of suction hood: Φ50㎜

Radius of expanding arm: 0.8-1.2m

Air volume: 0-60mᶾ/h

Wind speed of pipeline: 6-8m/s

Input voltage: AC220V/50HZ

Input power: 200W

Filter efficiency: Dust less than 0.5um, unpleasant smell and germ

Weight: 25KG

Overall dimension: 332×432×550

Multiple filtration system

The multi-tower filter structure has a significant purification effect, and each layer can be replaced individually.


Hot Tags: portable welding fume extractor, China, suppliers, manufacturers, factory, customized, bulk, pricelist, quotation, in stock, free sample, moxibustion smoke extraction market potential for salon, fume extraction development strategies for moxibustion salon, moxibustion salon fume extraction product comparison, beauty salon moxibustion fume extraction brand equity, beauty salon moxibustion comfortable and pleasant air arms, fume extraction performance enhancement for moxibustion
