Mobile smoking machine

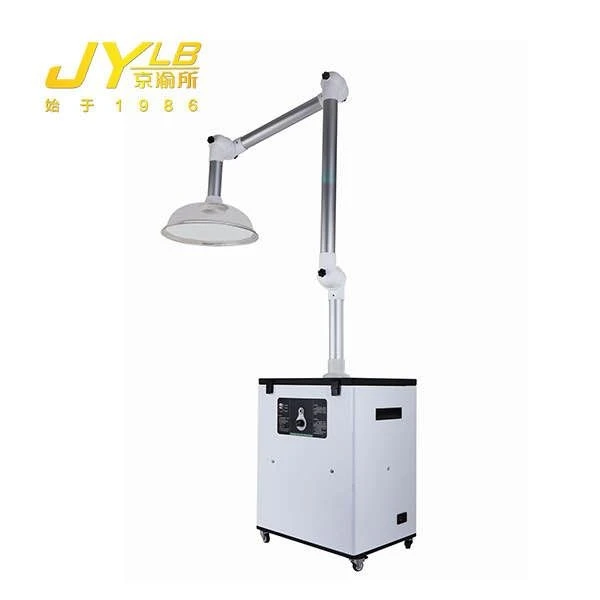

Factory Outlet Fume Extractor with Single Arm High Filtering Welding Smoke Evacuator JYLB-500A-CS
Application scope
Laboratory, soldering tin, Dermatology Department, Cosmetology Department, Gynecology Department, Dental Department, etc.
Details
High end solder fume extractor for an affordable price. Single suction arms with a capacity of 120m3/h airflow . The Quick 6101A1 can absorb fumes directly from the source. This system will also filter and recirculate the air it takes in.
The triple filter effectively removes the hazardous substances from fumes. Additionally, the pre-filter, central filter and main filter are designed in separate structure. Therefore, you can make full use of the filters and they are easy to, seperatly, replace which reduces the cost accordingly.
It is hard to give an indication on when to replace the filters, because this heavily depends on the intensity of usage and what kind of fumes you extract. But to give you an indication: usually the pre- and central filters are being replaced once or twice a year. On average, the main filter is being replaced every year or every two years. The display on the fume extractor tells you when the pressure inside is too high, due to congestions because of a dirty filter and so you get an indication on when to replace the filters.
Very easy to install because of the integrated structure design; no extra pipeline is required. Also easy to operate with the wired remote control with straightforward controls (On/Off switch with adjustable air flow knob). The noise caused during operation is low.
Technical parameter
Brand: Jingyi Institute
Model: JYLB-500A-CS
Suction arm: 5 sections
Size of suction hood: Φ50㎜
Radius of expanding arm: 0.8-1.2m
Air volume: 0-60mᶾ/h
Wind speed of pipeline: 6-8m/s
Input voltage: AC220V/50HZ
Input power: 200W
Filter efficiency: Dust less than 0.5um, unpleasant smell and germ
Weight: 25KG
Overall dimension: 332×432×550
Automated and robotic welding
Semi-automated and robotic welding applications utilize precise machinery and electronic controls to perform welding and cutting operations that used to be routinely performed by a welder. Since the mechanical device or robotic arm is performing the welding process, fume arms are difficult as they need to be moved near the weld point to efficiently capture the fume. Nederman solutions for semi-auto and automatic welding processes include both on-torch and canopy hoods for welding fume extraction.
As an alternative to the hood and arm fume extractor, on-torch or integrated welding fume MIG gun extraction can be used. The on-torch extraction systems extract the fumes directly from the welding torch without interfering with shielding gas. The extraction systems are available as both mobile single user extraction units and central extraction systems serving several extraction points.
Why choose us
1. Manufacturer's supply
2. Support customization
3. One year warranty
4. Free design
5. Various specifications
6. Reliable quality
7. Worry-free after-sales
Company introduction
Wenzhou Jingyu Medical Instruments Co., Ltd., is one of leading enterprise that integrates production, sales, installation and after-sales for fume extraction systems and medical fume extractor, industrial fume extractor products.Over the past 34 years, with customers centered, Jingyu Institute has been ceasingly developing the series products suitable for the customers based on the technology. Our Company has over 40 patents with independent property rights for fume extractor. In China, we are the first company which obtained the Approval of Q Q-switching Technique and Registration Certificate of Super Pulse Laser by the state, and first launches the medical smoking machine, moxibustion smoke exhaust system, air purification products which is widely used in various types of environments,such as hopstial,Food,ChemicalEngineering,SchoolLaboratory Equipment, Grinding Work,Sandblasting Work, Smashing Work.Stirring Operation, Organic Glass Processing Work,Circuit Board Processing Work ,Drilling Work,Rust Cutting Operation.
We have over 34 year rich experience for industrial production and export trade experience of fume extractor, providing quality products and services to more than 200 domestic and foreign customers
'Protect the environment, purify your lung" protect your health as our own duty.
Welcome to visit our factory !
