Salon air purifier moxibustion fume extractor JYLB-500A-CS
Working principle
The maintenance-free and high-performance large negative pressure fan in filter sucks the exhaust gas and dust of pollutant sources into the filter from the primary filter element to universal suction arm. Then the exhaust gas and dust are emitted to the air after absorption filtration of main filter. The emitted air reaches the relevant national emission standards for the purpose of protecting the health of staff.
Characteristics and advantages
Good in suction: It can solve the diffusion of chemical gas in the laboratory and smog in the treatment with high-frequency electrotome and laser.
Low noise: It can avoid the secondary pollution due to excessive noise in use process.
No shutdown: It can solve the shutdown of motor due to overheat after continuous operation for a long time.

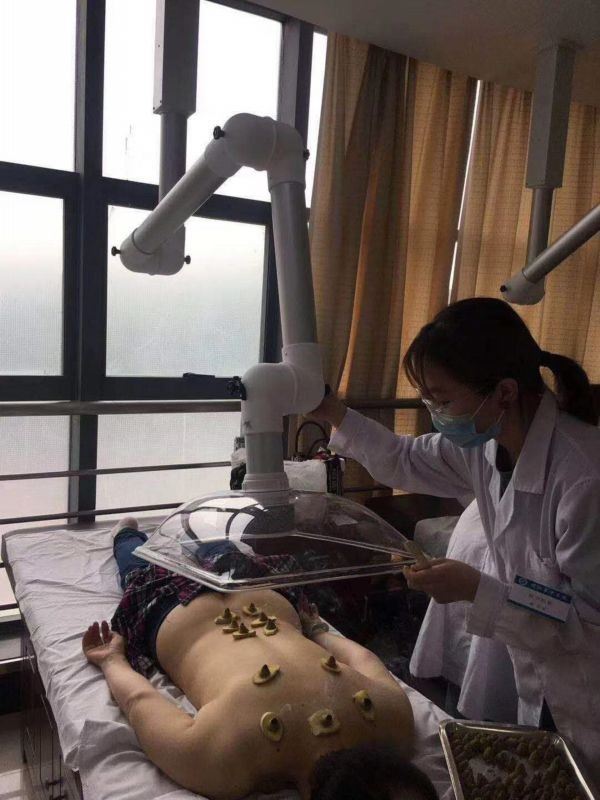

Easy to operate: It adopts the universal suction arm and matches with various cover mouths to achieve 360° rotation and rotation and stop at optional position, without shielding the operating sight of staff.
No unpleasant smell: Main filter as our company's invention patent (patent No.: ZL2015I0079584.0) can effectively filter the molecule with a diameter of 0.1 um, and its filtration rate is ≥99.99%.
Technical parameter
Brand: Jingyi Institute
Model: JYLB-500A-CS
Suction arm: 5 sections
Size of suction hood: Φ50㎜
Radius of expanding arm: 0.8-1.2m
Air volume: 0-60mᶾ/h
Wind speed of pipeline: 6-8m/s
Input voltage: AC220V/50HZ
Input power: 200W
Filter efficiency: Dust less than 0.5um, unpleasant smell and germ
Weight: 25KG
Overall dimension: 332×432×550
Parameters of gas-collecting hood
Picture |
|
|
Size | Φ50×120 | Φ160 |
Color | Transparent | Transparent |
Material | PC | PC |
Shape | Arc | Circle |
Usage | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.2-0.8m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.2m/s |
Company introduction
Wenzhou Jingyu Medical Instruments Co., Ltd., is one of leading enterprise that integrates production, sales, installation and after-sales for fume extraction systems and medical fume extractor, industrial fume extractor products.Over the past 34 years, with customers centered, Jingyu Institute has been ceasingly developing the series products suitable for the customers based on the technology. Our Company has over 40 patents with independent property rights for fume extractor. In China, we are the first company which obtained the Approval of Q Q-switching Technique and Registration Certificate of Super Pulse Laser by the state, and first launches the medical smoking machine, moxibustion smoke exhaust system, air purification products which is widely used in various types of environments,such as hopstial,Food,ChemicalEngineering,SchoolLaboratory Equipment, Grinding Work,Sandblasting Work, Smashing Work.Stirring Operation, Organic Glass Processing Work,Circuit Board Processing Work ,Drilling Work,Rust Cutting Operation.
We have over 34 year rich experience for industrial production and export trade experience of fume extractor, providing quality products and services to more than 200 domestic and foreign customers
'Protect the environment, purify your lung" protect your health as our own duty.
Welcome to visit our factory !
Certificate
Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI
Q: Is this filter is a patented product of your company? what is the material for filter?
A: Yes,This filter element is do our special patented product only our company manufacture , which can filter 85% of bacteria, dust, dust particles, chemical harmful gases in the air, and protect people's breathing.This filter is installed on our smoking machine, including our laboratory suction arm and all series products with special filter material
Q: Is available to buy your original design?
A: Yes, all the products are designed professionally by our engineer. Please feel free to contact us for the items you are interested.
Q: May I have my own design?
A: Yes, welcome. If you have your own design, please kindly send the drawing to us. Meanwhile, we also can offer design service according to per customers’ detailed requirement.
Q: Can I change the size and color?
A: Yes, of course. We have white, red, transparent three colour.Customized made is available.
Q: What is the lead time?
A: We usually will start production after receiving 30% deposit, and as for the exact lead time, it depends on quantity and detailed requirement. We can promise it will be shipped on time as we negotiated.
Q: Do you have certifications for your products?
A: Yes, We have CE, ISO9001,CSA, TUV, etc.
Q:What is your payment term?
A: T/T ,L/C and Western Union.
Q: What is the shipping port?
A: Shanghai, or Ningbo, or other ports to be both agreed.
Q: How about the products warranty?
A: Five years
