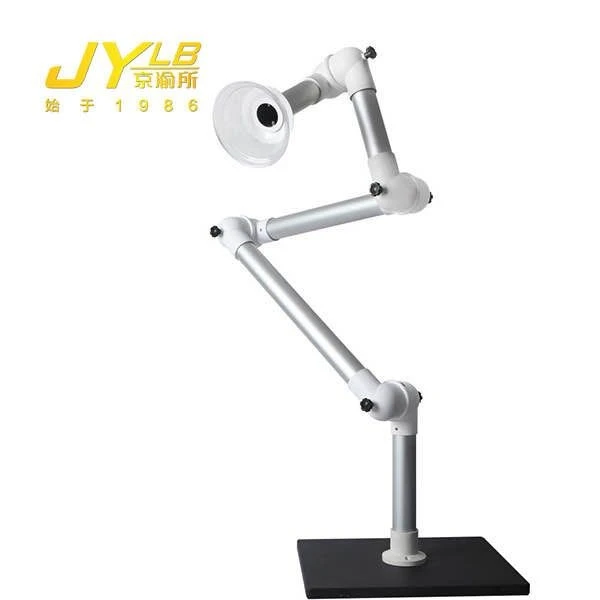

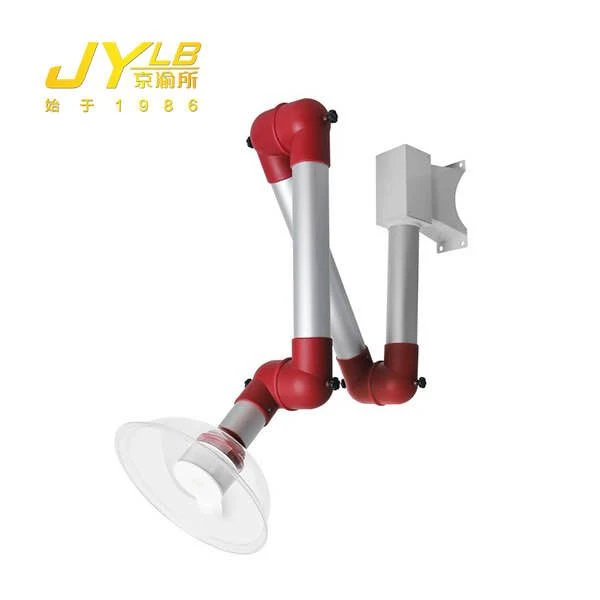

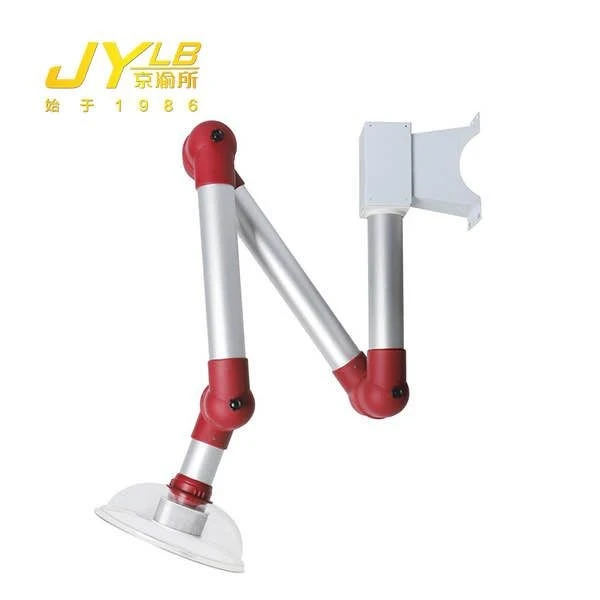

JYLB-50 Universal Suction ArmJYLB-50

JYLB-50 universal suction arm (light type)

Abundant chemical vapor fog, harmful gas or dust would be generated in production, research and development, experiment and treatment. In order to guarantee the fitness of staff, one universal suction arm is installed at every point near its pollutant sources. It is the best solution to prevent polluted air from diffusing into ambient environment.

Application scope

It is applicable to the suction of heavily-polluted working environment, such as: aerosol of Stomatology Department, the gas or light dust in Dermatology Department, Atomizing Chamber, Gynecology Department and laboratory and for soldering tin full of the smoke and dust. It can be equipped in the mobile smoking machine, dental department smoking machine and industrial smoking machine.

Applicable industry

Laboratory pharmaceutical industry, electronics factory, chemical industry, food industry, Dental Department, laser electrotome, laboratory, Atomizing Chamber, Gynecology Department, Dermatology Department, Cosmetology Department, machine shop, cultural relic repair, etc.

Working principle

Adjust the distance between universal suction arm and pollution source as 5-15 cm, form 0.1m /s--1.5m/s face velocity, and suck exhaust gas into purging system for filtration or external dumping. The air exhaust air velocity and air volume can conduct the infinite adjustment through the ball valve on universal suction arm to guarantee that exhaust gas can be sucked effectively for the optimum status.

Characteristics and advantages

1. Arm body: It adopts the aluminum oxidation process for polishing and grinding.

2. The high-quality spring of inner arm and the idiosyncratic seal ring can achieve perfect self-suspension function. The Universal Suction Arm can be easily adjusted to the pollution sources by operator through it.

3. Installing support: The internal and external surface of installing support shall conduct plastic spraying.

4. The universal suction arm has superb self-suspension function to avoid drooping after invalidation. The hanging stick and spring are made of acid-proof stainless steel.

5. Simple maintenance: It can be maintained through simple cleaning, disassembly and installation as per requirements, without any tools.

6. It is designed with large elbow to minimize the noise and loss of pressure.

7. It owns independent intellectual property right and many patents.

JYLB-50-SFQ/SQ

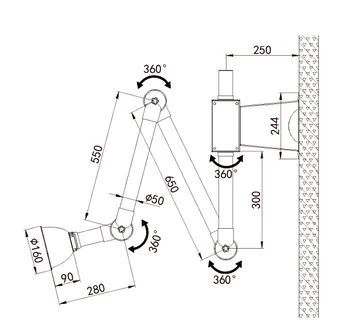

Technical parameter

Description of product configuration

Brand: Jingyu

Product name: Universal Fume Extraction Arm

Diameter of tubular arm: Φ50

Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume

Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350

Color: Transparent

Parameters of gas-collecting hood

Company Information

Wenzhou Jingyu Medical Instruments Co., Ltd., is one of leading enterprise that integrates production, sales, installation and after-sales for fume extraction systems and medical fume extractor, industrial fume extractor products.Over the past 34 years, with customers centered, Jingyu Institute has been ceasingly developing the series products suitable for the customers based on the technology. Our Company has over 40 patents with independent property rights for fume extractor. In China, we are the first company which obtained the Approval of Q Q-switching Technique and Registration Certificate of Super Pulse Laser by the state, and first launches the medical smoking machine, moxibustion smoke exhaust system, air purification products which is widely used in various types of environments,such as hopstial,Food,ChemicalEngineering,SchoolLaboratory Equipment, Grinding Work,Sandblasting Work, Smashing Work.Stirring Operation, Organic Glass Processing Work,Circuit Board Processing Work ,Drilling Work,Rust Cutting Operation.

We have over 34 year rich experience for industrial production and export trade experience of fume extractor, providing quality products and services to more than 200 domestic and foreign customers

'Protect the environment, purify your lung" protect your health as our own duty.

Welcome to visit our factory !

Application and Feature:

*Our fume extraction arms system is a kind of high efficiency device specially designed for using in the laboratories frequently. It is applicable to environment that has close contact with volatile corrosive substances. It can remove harmful gas, smoke and dust to ensure the ideal and safe air, and keep away hazardous substances from the human body effectively, so can protect the user.

*It has been widely used in various experiment and production fields, such as

electronic engineering, Iaser technology, chemistry, medical treatments, pharmacy, food industry, laboratories, production factories, schools and the places, where promote the productivity and working performance effectively.

*JYLB series fume extraction arms approval Patent certificate in China ,the

Patent number is NO.ZL 201821505888.4

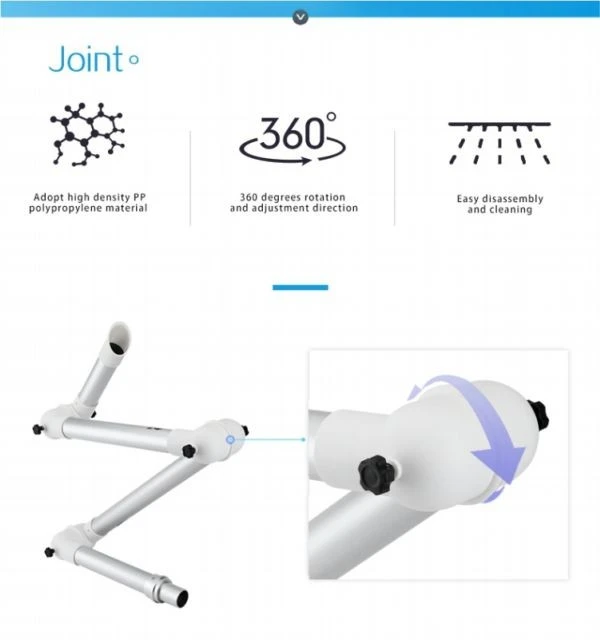

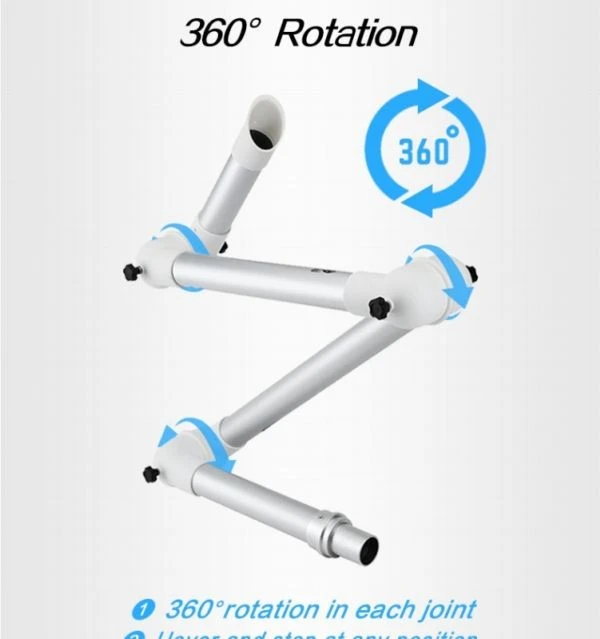

*Our fume extraction arms can keep hanging status automatically. The system is connected with crosshead made of stainless steel to reduce noise and loss of pressure, and it can be adjusted to any place conveniently by independent sustaining springs(inside and outside).

*It is very easy to operate and maintain the products.The product has 5 years granntee They can be adjusted to another place by one hand, and can be disassembled and washed without any tools.

*It is very easy to install the products on the table, on the wall, on the ceiling and can also be installed on the production equipment.Adjusting the Exhausting Capacity,Movable valve is installed inside the joint, fitting tightly with inner cavity of the joint. Stepless regulation with straight adjusting knob, which can guarantee the

maximum efficiency of the exhaust system at suitable place.

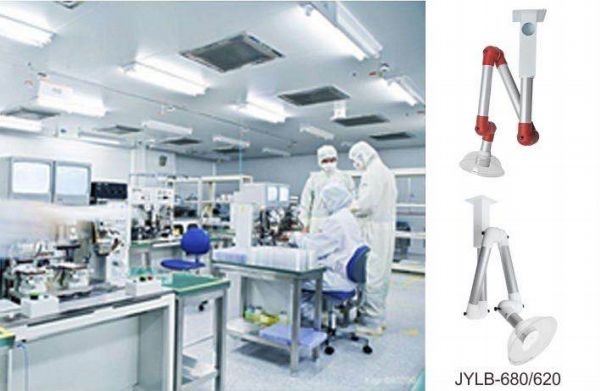

Application place

laboratory, School,Research Institute,Laboratory pharmaceutical industry, electronics factory, chemical industry, food industry, dentistry, laser electrosurgical unit, spray room, gynecology, dermatology, cosmetology, mechanical processing workshop, cultural relic restoration, etc.
