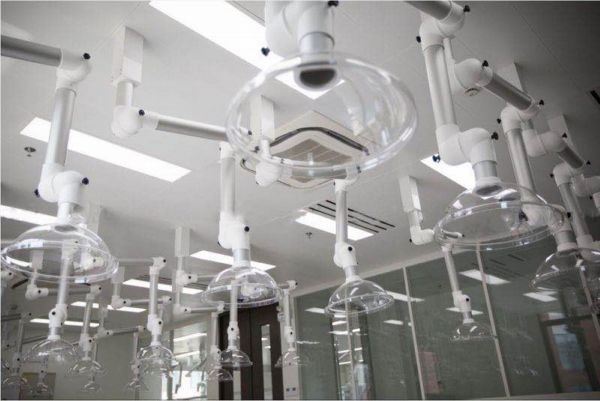

Lab Universal Flexible Fume Extraction extractor arm diameter 50
JYLB-50-SFD
|
|
Technical parameter

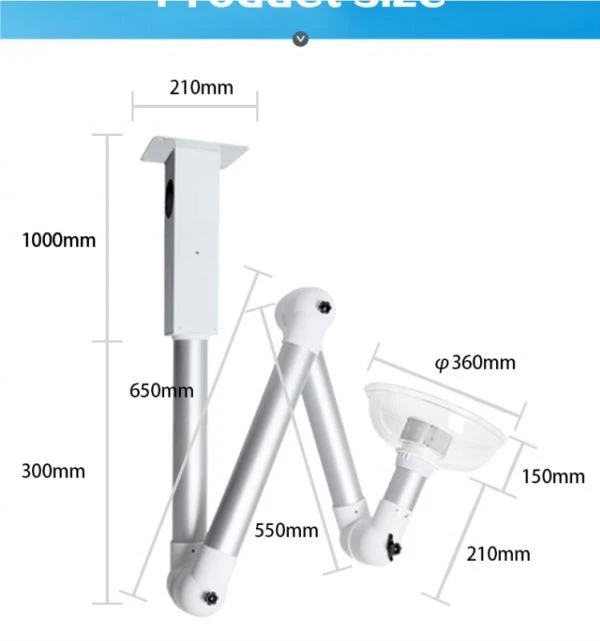

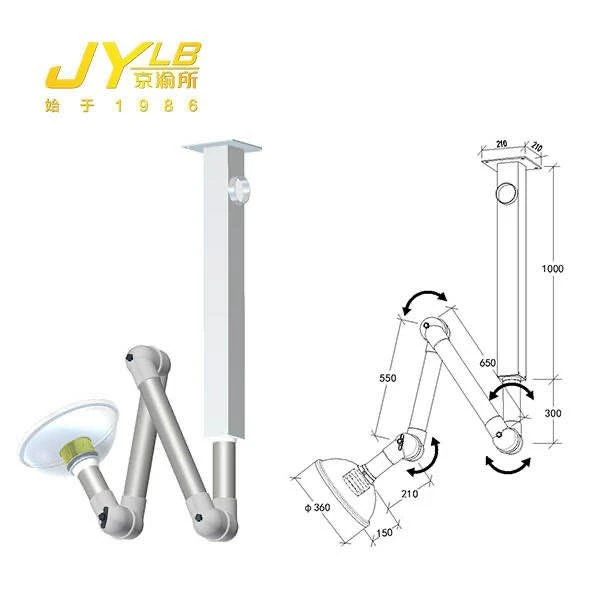

Model | Material arm | Spring | Size of air outlet | Pipeline caliber | Seal ring | Activity radius | Installing support and method | Size of node arm A, B, C, D, E | Recommended air volume | Color | Filter element | Valve | Remarks |
JYLB-50-SFD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | √ | |
JYLB-50-SD | Aluminum oxidation | 304 Stainless steel | Φ90 | Φ50 | POE | 1.2-1.8 m | Ceiling type | 1000, 300, 650, 550, 200 | 30-80mᶾ/h | White | Configurable | X |
Description of product configuration
Brand: Jingyu
Product name: Universal Fume Extraction Arm
Diameter of tubular arm: Φ50
Air valve: The hemispherical air valve can achieve the stepless adjustment of air volume
Size of gas-collecting hood: Circle: Φ160, circle: Φ220, circle: Φ350
Color: Transparent
Installing support: 400, 700, 1000, 1200 (optional)
Material: Stainless steel plastic spraying
How to use
Instructions
1. Turn on the main switch of the exhaust system fan.
2. Holding the second section of the suction arm, unfold the folded universal suction arm slightly and point it to the point where the smoke or dust is generated.
3. Adjust the universal arm so that the center point of the unfolded air collecting hood is aligned with the generating point of the moxibustion smoke and dust mist.
4. Adjust the height of the universal suction arm, and the height of the air collecting hood is 15cm～25cm from the smoke or dust generating point.
5. Rotate the air valve knob to adjust the air volume, so that the moxibustion smoke and dust can be inhaled into the air collecting hood naturally and smoothly.
6. By adjusting the arm joint knob, it is better to pull the universal suction arm lightly without sagging (Note: It is not necessary to adjust the arm joint knob every time you use it. The tightness of the arm joint can ensure that the universal suction arm is free. Position rotation is better).
7. After use, the foldable universal suction arm should return to its original position, so it is better not to touch your head or block the user's operation.
Note: After the universal suction hood has been used for 3 to 5 days, it needs to be scrubbed with clean water to ensure its surface is bright and transparent; the temperature-resistant acrylic of the suction hood is 70°C, and the POE is 100°C.
Advantages
1. Arm body: aluminum oxide, polishing and grinding process
2. With the help of the high-quality spring of the inner arm and the special sealing ring, the perfect self-hovering function is realized. This structure makes it easy for the operator to adjust the universal suction arm to the source of pollution during work.
3. Mounting bracket: the inner and outer surfaces of the mounting bracket have been sprayed
4. The universal suction arm has excellent self-hovering performance and will not sag due to failure. The suspension rod and spring are made of acid-proof stainless steel.
5. Simple maintenance: as long as it is simple to clean, disassemble and install according to the requirements, it can be completed without any tools
6. Large elbow design minimizes noise and pressure loss
7. Have independent intellectual property rights and a number of patents
Parameters of gas-collecting hood
Picture |
|
|
|
Size | Φ350 | Φ220 | Φ160 |
Color | Transparent | Transparent | Transparent |
Material | PC | PC | PC |
Shape | Circle | Circle | Circle |
Usage | Used in condition with a large suction area in laboratory as well as a face velocity of about 0.1-0.3m/s | Used in condition with a small suction area in laboratory as well as a face velocity of about 0.5-1m/s | Used in the condition with a small suction area in laboratory and a face velocity of over 1.5m/s |
Certificate
Our company has passed ISO9001 quality relationship system certificate, CE certificate, and American safety standard certification ANSI
FAQ
Q. Are you trading company or manufacturer?
A:We have our own factory in Wenzhou city. We are able to provide OEM or ODM service and one step solution for smoke pollution problem.
Q: Is available to buy your original design?
A: Yes, all the products are designed professionally by our engineer. Please feel free to contact us for the items you are interested.
Q: May I have my own design?
A: Yes, welcome. If you have your own design, please kindly send the drawing to us. Meanwhile, we also can offer design service according to per customers’ detailed requirement.
Q: Can I change the size and color?
A: Yes, of course. We have white, red, transparent three colour.Customized made is available.
Q: What is the lead time?
A: We usually will start production after receiving 30% deposit, and as for the exact lead time, it depends on quantity and detailed requirement. We can promise it will be shipped on time as we negotiated.
Q: Do you have certifications for your products?
A: Yes, We have CE, ISO9001,CSA, TUV, etc.
Q:What is your payment term?
A: T/T ,L/C and Western Union.
Q: What is the shipping port?
A: Shanghai, or Ningbo, or other ports to be both agreed.
Q: How about the products warranty?
A: Five years
